Module heating project

Module Heating + Mining solution

We offer comprehensive services for everything from small household appliances to extremely large-scale equipment

HEATCORE district heating solution

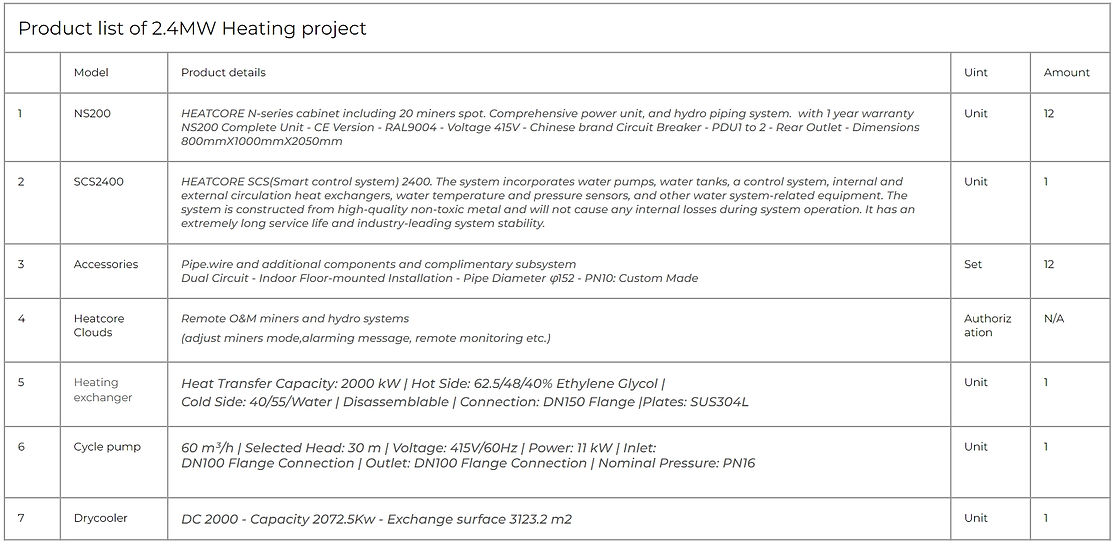

We have mature solutions in the field of heating. This 2400 kW project is equipment that we have already been running in Finland. The project is indoors project, and the heat generated by the miners is all supplied to the building's HVAC system. The heating efficiency of the miners is around 95%, which is also a very efficient set of equipment from the perspective of a heater.

Real operation image

Water flow diagram

The solutions

Our goal is to minimize the cost of integrating our existing equipment into existing heating systems while eliminating the need for separate cooling systems. This ensures that the total investment in our solution is significantly lower than traditional mining models. By leveraging Bitmain's high-temperature mining machine technology, we can generate hot hydro up to 80°C. When combined with existing heating equipment, our solution can provide value in any scenario, not to mention the additional revenue generated from cryptocurrency mining.

Key features and benefits:

Support miner capability: 7.5-10 MW
Support miner type: Whatsminer Mx3/Mx4 series
Compact footprint: Accommodates 200~240 ASIC miners
Superior cooling: Water-based cooling for optimal heat dissipation
Noise reduction: Less than 65 dB at one meter
Virtually waterless: Minimal maintenance
Protection: Guards against various environmental factors

N-cabinet X 2

SCS400

DC400

Our N-cabinet is a versatile mining rig enclosure designed to accommodate 18 or 20 mining machines based on customer requirements. Adhering to safety standards and industry best practices, our design features a dual-tier power supply system. Each mining machine is equipped with an independent PDU, and the entire cabinet is also connected to a master PDU. All mining machines are compatible with the universal interface of Whatsminer.

Input power: 3 Phase 380V-480V 50/60Hz
Mining machine capacity: 18/20 hydro cooling miners
Size: 800W*1000D*2050H (mm)
Container size : 20ft HQ

Key features and benefits:

Support miner capability: 7.5-10 MW
Support miner type: Whatsminer Mx3/Mx4 series
Compact footprint: 20/18 miners of a Rack
Superior cooling: Water-based cooling for optimal heat dissipation
Noise reduction: Less than 65 dB at one meter
Virtually waterless: Minimal maintenance
Protection: Guards against various environmental factors

N-cabinet exterior

Individual PDU for miner

SCS stands for Smart Control System. This cabinet, is a complementary component to the N-cabinet, is equipped with a PLC, pump assembly, remote control system, human-machine interface, and various water cooling system devices. Our SCS offers diverse specifications to cater to different customer needs, and we can also provide customized solutions based on specific customer requirements.
